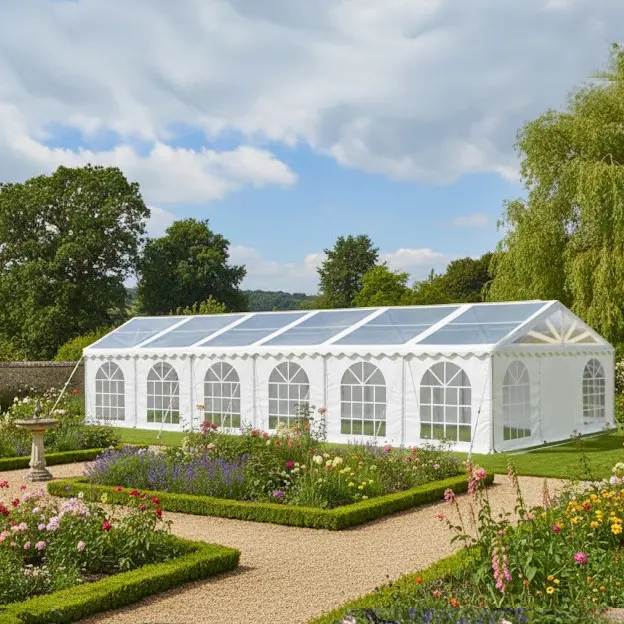

6m x 12m Clear Marquee – 500gsm PVC

6m x 12m Clear Marquee – 500gsm PVC

The 6x12m transparent clear roof marquees have raised the bar with it’s fire retardant 500gsm PVC roof & side walls and strong, durable galvanised steel framework.

Clear roof marquees look great in the evening with lights shining out from the marquee or if in a particularly beautiful location such as glamping or camping sites or even for weddings.

Features include ground-bars & roof braces for added strength, eaves braves to prevent water-pooling, a true interchangeable side panel system, gable uprights for added wind-resistance and a high-frequency welded envelope style roof.

Dimensions

Size 6m x 12m

Width 6m

Length 12m

Height at top of leg 2m

Height at apex 3m

Entrance dimension – 2m x 2m

The PVC used has rip-stop technology making them tear resistant and long-life. There are many types of marquee PVC but we make sure only to use high-quality Duracoretex™ material. Covers are 100% waterproof with high-frequency welded seams, fire retardant to to BS5438 & BS7837 and UV stabilised.

Unlike other manufacturers we design our marquees with the gable triangle incorporated into the rest of the roof. This makes the end of the marquee more wind-resistant as it reduces the size of the end panel and therefore billowing in windy conditions.

Seams High-frequency welded & reinforced

Roof and side 500gsm PVC

Tearing strength 1600N

Flame retardant BS5438 & BS7837

100% waterproof

Using galvanised steel poles mean that the framework is protected from corrosion and rust. Unlike powder coated frames a scratch or chip does not fundamentally compromise the coating. Whereas powder coated frames allow water to spread beneath the rest of the surface.

Galvanised steel is also easier to repair and maintain. If the framework becomes dull after a few years it can easily be refreshed with a galvanising spray.

Framework – Galvanised steel pipe

Pipes are 38mm diameter, 1.3mm thick

Connectors 42mm diameter, 1.3mm thick

Groundbars included

Come with comprehensive instructions

Minimum number of people to erect – 2

Ideal number 2-3

Time to erect 3-4 hours
